  • Up to a 15% Reduction in your Energy Bills: Our ENERGY STAR qualified windows and doors can reduce your energy bills up to 15% while helping protect the environment.  And our windows can exceed ENERGY STAR Qualifications by more than 25% leading to even greater energy savings.
  • Warmer in the Winter and Cooler in the Summer:
    • More of the sun’s heat is blocked in the summer.
    • More of your furnace’s heat stays in your home in the winter.
    • Less drafts from air infiltration.
  • Strength: Most of our windows can withstand wind speeds of over 100 miles per hour.
  • Ease of Cleaning: For ease of cleaning the glass cranks out to a full 90 degrees from your home on most casement windows allowing you to can clean the outside of your windows from inside your home.  Optional Advanced Easy Clean Glass is a remarkable advancement in glass design that eliminates frequent exterior window cleaning. Windows and doors with special Easy Clean Glass require less effort than windows with ordinary glass.
  • Increased Home Value: Based on Remodeling Magazines 2011-2012 National Cost vs Value Report after installing the vinyl windows pictured above your home’s value should increase so much as to recoup 68% of the cost of your new windows and installation.
  • You’ll Love the Way they Look: Stand out with a stylish new look or recreate the authentic look on an old window.  Whatever your reason, our customers love the way their new windows look.
  • Operational Ease: No more hard to operate windows. our windows are designed to be easy to operate.
  • A Lifetime of Windows that Work: Life comes with few guarantees. Fortunately, our windows offer you a permanent solution. Our custom vinyl windows offer more than construction quality, unmatched energy-efficiency and low maintenance.  They also offer a Limited Lifetime Warranty. We believe so strongly in the durability of our windows that we back each window and door with our hassle-free Limited Lifetime Warranty. Lifetime means your windows and doors are protected under the warranty for as long  as you live in your home. And your warranty is transferable to the next homeowner, helping you protect your investment by increasing your home’s resale value.
Exterior
Available Interior Options


White

White

Cherry

Light Oak

Dark Oak


Beige

White

Cherry

Light Oak

Dark Oak

Beige


Earthtone

White

Cherry

Light Oak


Sandstone

White


Dark Bronze

White

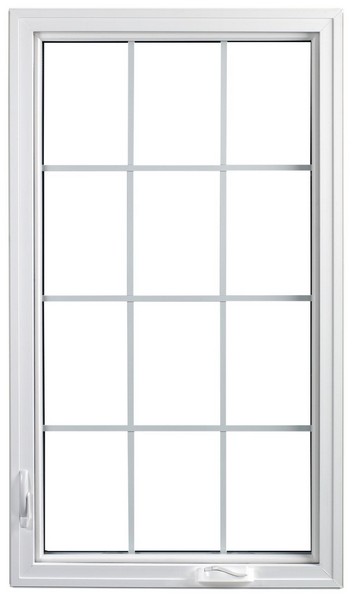

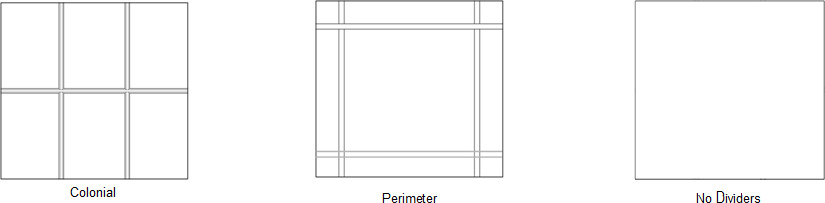

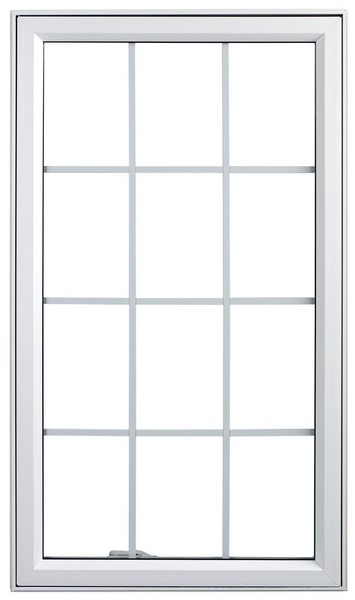

The number of horizontal and vertical dividers will vary on all window styles with colonial dividers. The number of dividers is based the size of your window. Diamond pattern available upon request.



  • In between the glass for easy glass cleaning.
  • 1 inch wide
  • Sculptured
  • Flat glass dividers are available upon request (please call) yet they are not available with a wood grain interior.


Dual Pane Insulated Glass:
Dual pane insulated glass consists of two panes of glass that are sealed together resulting in one dead air space in between the glass – the dead air space is an insulator. Our overall insulated glass measures 7/8” thick. A dead air space between the glass of at least 3/4” is optimal for allowing air to act as an insulator. Any dead air space over 3/4” does not provide more insulation. Having dual pane glass greatly reduces heat and sound transfer.

Triple Pane Insulated Glass:
Triple pane insulated glass consists of three panes of glass that are sealed together resulting in two dead air spaces in between the glass. Triple pane glass reduces the heat and sound transfer more than dual pane insulated glass.

Low-E:
Low-E stands for low emissivity. It is a very thin metallic coating that allows the sun’s light to pass through the insulating glass, but, at the same time reflects radiant heat back toward its source. It helps keep your home warmer in the winter by trapping radiant heat in your home. And it helps keep your home cooler in the summer by blocking radiant heat from entering your home. The low-e glass provided in your windows results in minimal visible darkening which has been a common problem with some low-e glass. Also it minimizes interior glare, reducing eyestrain and making it easier to watch television or look at a computer screen when bright sunlight fills a room.

Argon Gas:
Argon is a nontoxic, nonreactive, clear, and odorless gas . It is put in the air space(s) of your dual and triple pane insulated glass. Argon gas is less heavy and slower-moving than air and thus minimizes convection currents within the dead air space. Conduction through the gas is reduced, and the overall transfer of heat is reduced.

Warm Edge Spacer:
The panes of glass in dual or triple pane insulating glass are held together by a spacer. The spacer runs along the entire perimeter of your insulating glass. The edge of the glass is the coldest part of any window. So the spacer is very important. The Warm Edge Spacer System reduces thermal transfer at the edge of the glass by utilizing a unique U-shaped channel to separate the glass panes and interrupt the natural flow of heat to cold. It flexes with glass expansion and contraction to ensure a strong seal for the life of the window.

Optional Advanced Easy Clean® Glass is a remarkable advancement in glass design that eliminates frequent exterior window cleaning. Windows and doors with special Easy Clean Glass require less effort to clean than windows with ordinary glass.

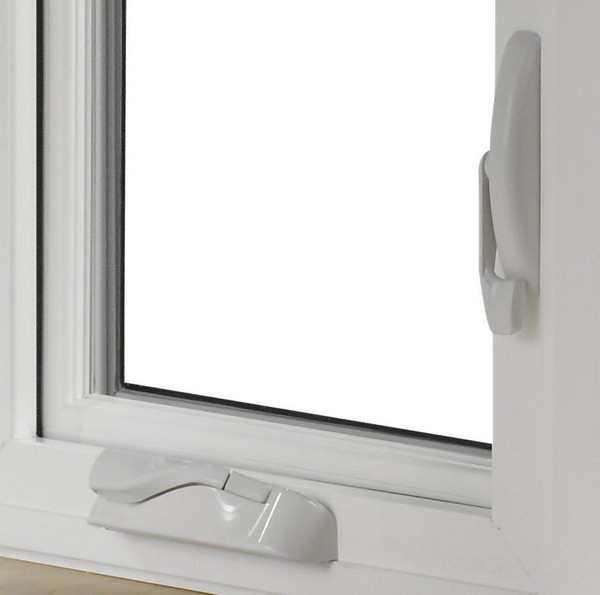

  • Nested Crank Handle: This folding handle offers a smoother, more contemporary, integrated look when nested in the operator cover.
    • Aside from the aesthetic appeal, it reduces interference with blinds and curtains.
    • The streamlined design allows for easy screen release without removing the crank handle.
    • This system is uniquely designed to prevent handle collapse during operation.

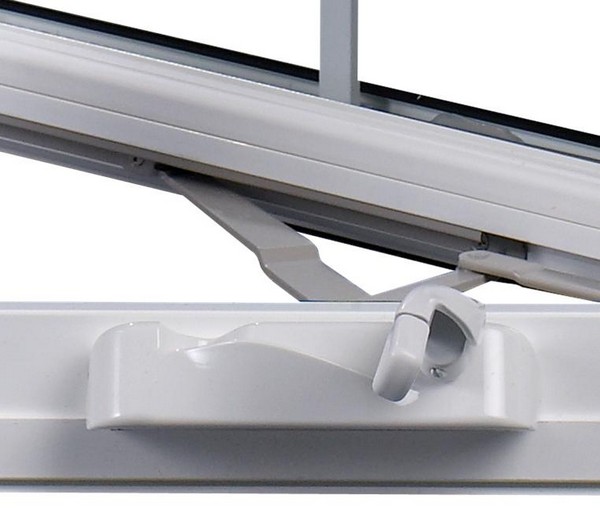

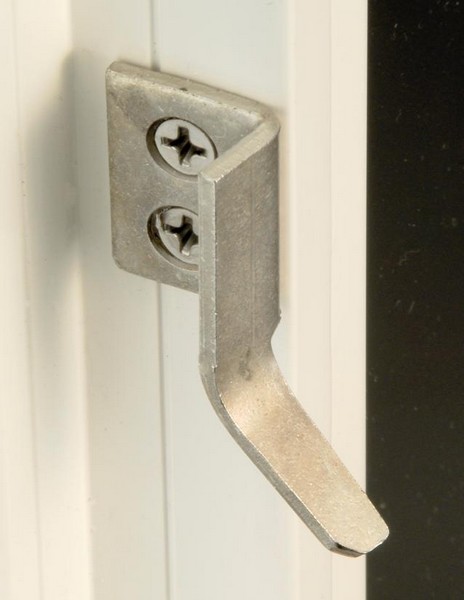

  • Lock Lever: This is a single handle, multi-point locking system.
    • When you lock your window it engages the sash at multiple points for optimal security and energy efficiency.
    • Secure and solid, lets you “feel” when the window is locked.
    • The unique design makes the lock highly pick-resistant.
    • Excellent “reach-out” capability. No need to fully close the window before locking it.
    • The heart of this system is the “progressive” locking action. The casement tie bar engages and pulls in the lowest lock point first, followed by the remaining keeper(s) in sequence. This “zippered effect” assures the top lock point on tall units always engages and pulls in.. You can feel the smooth and easy lock operation the sequential lock action provides.
    • Note that a crank-out casement has a single handle and the crank-out awing window has two handles.

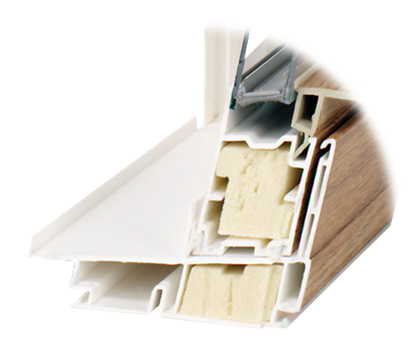

Your windows will be entirely fusion welded – sashes and mainframes – to create a solid, one-piece unit that maintains its strength over the years. We offer a state-of-the-art fusion process that ensures frame and sash corners won't have the excess variance found with other welding techniques. (Pictured is a Crank-Out window style.)





R-Core® insulation is pre-expanded high-density solid-polyurethane which is the same material type used in many refrigerator/freezer doors. It prevents voids and settling and results in even distribution of the maximum insulating barrier. Premium Series only. (Not available on garden windows, basement windows or sliding doors.)

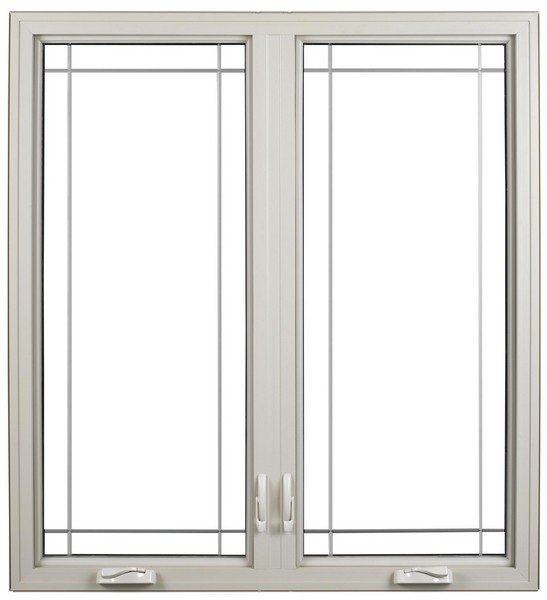

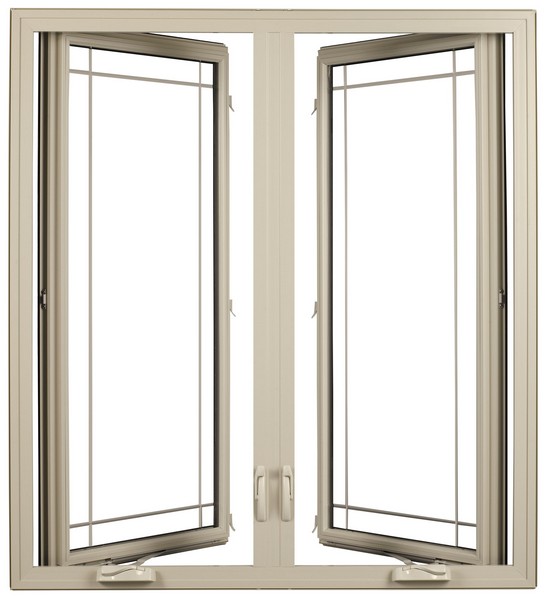

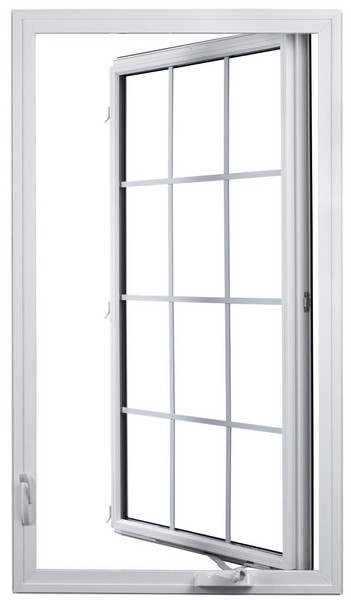

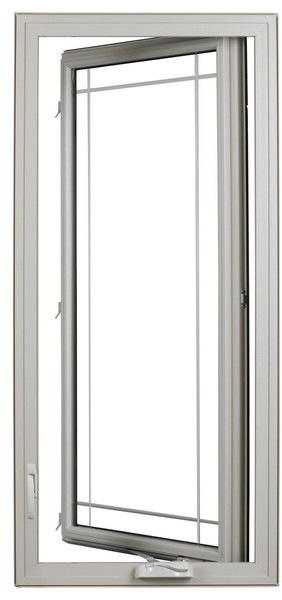

Crank-Out Casement Window  Specifications

Minimums and Maximums

Single







Twin









Triple









Quad







Fixed





Minimum Width









14 5/8



28 3/4







42 3/4







56 7/8





13 5/8





Minimum Height









22



22







22







22





13 5/8





Maximum Width









36



72







120







120





84





Maximum Height









76



72







72







66





76









































































Unit Calculations







Single





Twin









Triple









Quad







Fixed





Glass Width









UW - 4.750"



(UW / 2) - 4.465"



(UW / 3) - 4.370





(UW / 4) - 4.3225



UW - 4.750"



Glass Height









UH - 4.750"





UH - 4.750"







UH - 4.750"







UH - 4.750"







UH - 4.750"









































































Egress Width (Std. Hinge)

UW - 9.500"





na











na











na











na





Egress Width (Wash Hinge)

UW - 11.062"



(UW/2) - 10.7095



(UW/3) - 10.6145





(UW/4) - 10.567







na





Egress Width (Egress Hinge)

UW - 6.875"



(UW/2) - 6.585





(UW/3) - 6.490





(UW/4) - 6.4425







na





Egress Height (all)





UH - 4.364





UH - 4.364







UH - 4.364







UH - 4.364









na





*All Unit Calculations are based on equal sash











































Standard Hinge 14 5/8" to 23 7/8" wide, Washability Hinge 24" to 36" wide, Egress Hinge 24" to 32" wide

















































































Daylight Width







GW - 1.250"















































Daylight Height







GH - 1.250"





















































































































Double Strength standard for Glass UI over 80











































Triple Glazing Maximum = 22 Sq. Ft. of glass area









































Triple Strength standard for Glass UI over 115















































































































Tempered Glass Requirements

















































Any glass that exceeds 35 sq. feet must be tempered







































Any glass with a leg length exceeding 90" must be tempered

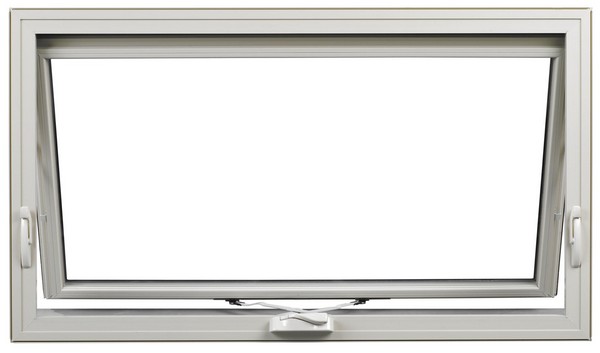

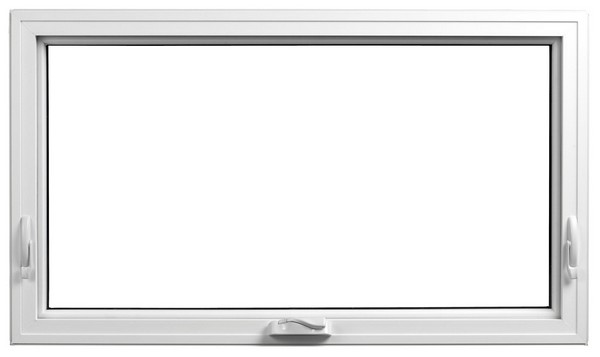

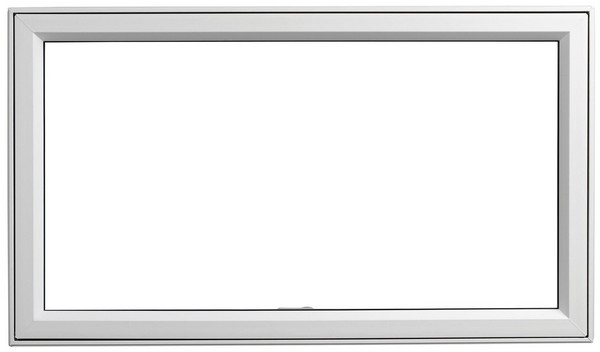

Crank-Out Awning Window Specifications



Minimums and Maximums







Minimum Width









=

18 5/8

inches



Maximum Width









=

60

inches



Minimum Height









=

16 1/2

inches



Maximum Height









=

43 1/4

inches



Maximum UI











=

89 5/8

UI





Double Strength standard for Glass UI over 80





Triple Glazing Maximum = 22 Sq. Ft. of glass area





Unit Calculations (Hopper and Awning)





Glass Width









UW - 4.750"











Glass Height









UH - 4.750"











































Daylight Width







GW - 1.250"











Daylight Height







GH - 1.250"
